AfterVLX 80 Fixed / Picture Window in Palm Beach Gardens, FL | TruePane Windows & Doors
The VLX 80 Fixed / Picture Window is a non-operable aluminum window built for one job: putting as much glass in front of you as possible. With a frame profile under two inches wide, it reads as a near-rimless sheet of glass, which is exactly why Palm Beach Gardens homeowners choose it for lake views, pool sightlines, and golf-course backdrops. TruePane Windows & Doors is an authorized ViewLux installation partner in Palm Beach Gardens, which means you get factory-spec installation backed by a local team that stands behind the work. Call (772) 794-8169 to talk about your opening sizes and get a free on-site measurement.
Product Overview - VLX 80 Fixed / Picture Window
The VLX 80 is a fixed window, meaning it doesn’t open. That’s not a compromise. It’s the point. Without hinges, sashes, or operator hardware, the frame can be slimmer and the glass area larger than any operable window of comparable width. The result is a clean, monolithic glass plane that maximizes daylight and gives you uninterrupted sightlines across the room.
Architecturally, this window earns its keep in rooms where the view is the feature. We’ve installed it in living rooms facing the Intracoastal, in dining rooms looking out at preserve land, and in bedrooms where the client wanted a wall of glass with zero visible hardware. It works beautifully as a stand-alone focal point or ganged together in horizontal runs to create a curtain-wall effect at a fraction of the cost.
The frame itself is extruded aluminum with a wall thickness of 0.079 inches. That’s a meaningful number: it puts rigidity in the frame without adding visual bulk. The profile width measures 1.97 inches, which is among the slimmest available in a residential aluminum picture window. Buyers choose this series over vinyl or wood alternatives because aluminum doesn’t sag, warp, or swell in South Florida humidity, and it holds its color for decades.
Zero visible hardware is not a marketing phrase here. The glass sits flush in the frame, the corners are cleanly mitred, and there are no latches, handles, or cranks to interrupt the sightline. What you see from inside is glass, a thin frame, and your view. That’s the whole design.
Technical Specifications
Here’s what the VLX 80 brings to the table, in plain numbers and terms.
- Frame material: Extruded aluminum, wall thickness 0.079″.
- Visible frame width: 1.97″ profile, one of the slimmest fixed-window frames on the South Florida market.
- Maximum span: Up to 120″ wide for a single unit, making it a genuine floor-to-ceiling glazing option.
- Glass options: Clear, Frosted, Low-E, Tempered, Laminated, Gray Tint, Black Tint.
- Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood wrap.
- Operation: Fixed (non-operable). No sash, no hardware, no moving parts.
- Impact-rated option: Laminated glass configuration available for windborne-debris zones.
- Thermal performance: NFRC-rated with thermal break technology built into the frame assembly.
Performance Features
Thermal Efficiency - Aluminum is a conductor, which is why the VLX 80 uses a thermal break in the frame to interrupt heat transfer. Combined with Low-E glass, this keeps afternoon Florida sun from turning your living room into a solarium. NFRC-rated energy performance means the numbers are tested, not guessed.
Acoustic Performance - The same tight seal that keeps water out also cuts road noise. For homes near PGA Boulevard, Northlake Boulevard, or I-95, the laminated glass option adds a significant reduction in exterior sound transmission. Thicker glass, fewer gaps, quieter rooms.
Airtightness & Weather Seal - Every perimeter joint gets AAMA 812 low-expansion foam sealant during installation. That’s the standard for air-sealing in commercial-grade aluminum work, and it’s how we prevent the slow infiltration of humid air that causes condensation between panes and mist on glass.
Waterproofing - Palm Beach Gardens gets roughly 60 inches of rain most years, much of it driven sideways for five months straight. The VLX 80 is designed with integrated drainage channels and, when installed per AAMA 2400/2410, keeps water on the outside where it belongs.
Wind Resistance - We don’t install windows in Palm Beach Gardens that can’t handle a hurricane-season squall. The VLX 80 is wind-load rated for local code requirements, and the laminated glass option meets impact-resistant standards for homes in windborne-debris zones.
Security & Hardware - There’s no hardware to fail, which is a security feature in itself. A fixed window with laminated glass is difficult to breach quickly, and because the frame is mechanically anchored to the opening, it stays put under conditions that would flex vinyl frames out of square.
Color & Glass Options
The finish choice sets the tone for the whole room. Premium Black is the strongest statement and works beautifully in modern and transitional homes around Palm Beach Gardens, especially against white or light stucco exteriors. Pure White disappears into bright interiors and is the go-to for coastal and contemporary styling. Anodized Silver is the commercial look: clean, bright, and understated. Bronze reads warmer and pairs naturally with homes that have earth-tone exteriors or darker trim. Champagne splits the difference between silver and bronze with a soft warm metallic that photographs beautifully in natural light. Teak Wood adds an architectural warmth that references mid-century design without the maintenance of real wood.
On the glass side, Low-E is the most common upgrade for Palm Beach Gardens homes because it cuts heat gain without noticeably darkening the view. Laminated glass is the choice for impact protection and acoustic damping. Frosted is ideal for bathrooms or sidelights where you want light but not sightlines. Gray and Black tints reduce glare and solar heat on west-facing walls, and Tempered glass is standard wherever code requires safety glazing.
Installation by TruePane Windows & Doors in Palm Beach Gardens
Here’s the honest truth about fixed aluminum windows: the product is only as good as the installation. A VLX 80 that’s set out of square will leak. A frame that isn’t sealed to AAMA 2400/2410 standards will eventually show water stains on the drywall below it. And any structural failure from improper installation will not be covered by the manufacturer’s warranty. That’s the risk of hiring a cut-rate crew, and it’s a risk you don’t take when you work with an authorized ViewLux partner.
Our installation process starts with a pre-install inspection of the rough opening. We check for rotted framing, out-of-level sills, and any water intrusion that predates the new window. We won’t set a new window into a compromised opening and call it done.
From there, the window is set level, plumb, and square. We shim as needed and mechanically anchor the frame. Every perimeter joint receives AAMA 812 low-expansion foam sealant, which serves triple duty: it insulates, it air-seals, and it allows for the natural expansion and contraction of aluminum without compromising the seal. After trim-out, we run a water test on the perimeter and check for any leaks before we clean up and vacate the opening.
Palm Beach Gardens specifics matter here. The salt air accelerates corrosion on low-quality hardware and unprotected aluminum. The afternoon thunderstorms test every window seal every single day from June through October. And while the VLX 80 is designed for this climate, the installation has to be right. That’s what we do, every day, in this city.
Frequently Asked Questions - VLX 80 Fixed / Picture Window
Lead times vary by glass configuration and finish, but most VLX 80 orders in the Palm Beach Gardens area arrive within 3 to 8 weeks of final measurement and deposit. Impact-rated laminated glass sometimes runs at the longer end of that range. We confirm the current lead time when you get a quote. Call (772) 794-8169 and we’ll give you a date range you can plan around.
Possibly. The VLX 80 with Low-E glass and the thermal break frame meets the NFRC energy performance ratings that many federal and Florida utility incentive programs require. The exact eligibility depends on the glass package you choose and the current year’s program rules. We’ll tell you what applies to your specific order when we quote it.
The VLX 80 carries manufacturer warranty coverage for the frame and glass, and TruePane Windows & Doors backs our installation workmanship with our own service guarantee. If something is wrong after installation, you call us, not a faceless warranty desk. The key is that the window must be installed by a qualified professional to keep that warranty intact. Improper installation is the fastest way to void it.
Yes. The VLX 80 is manufactured to your opening dimensions up to a maximum span of 120 inches wide. That means a single panel can be nearly ten feet of uninterrupted glass. We measure every opening precisely before ordering so the window fits the way it was designed to. Call (772) 794-8169 to schedule a free measurement and get exact pricing for your custom size.
Aluminum frames here need very little maintenance: a damp cloth and mild soap two or three times a year is enough to keep them clean. If you’re within a few blocks of the Intracoastal or the Atlantic, rinse the frame with fresh water periodically to remove salt residue. The finish is baked on and won’t peel or fade like painted vinyl, and there’s no wood to rot or reseal. That’s the long-term appeal of aluminum in Palm Beach Gardens.
Get a Quote - VLX 80 Fixed / Picture Window in Palm Beach Gardens
The VLX 80 Fixed / Picture Window is a purpose-built window for people who care about the view. If you’re planning a new build, a remodel, or a replacement that opens up a wall to glass, start with a free on-site measurement from TruePane Windows & Doors. We’ll help you choose the right glass, the right finish, and the right sizes for your Palm Beach Gardens home. Call (772) 794-8169 today.
Written by the team at TruePane Windows & Doors, authorized ViewLux installation partner serving Palm Beach Gardens, FL and surrounding communities.
Six Reasons Homeowners Choose TruePane Windows & Doors
Impact systems engineered to design pressures up to +/-100, matched to your wind zone - your openings hold when the storm arrives.
Low-E insulated impact glass from our manufacturer lines commonly cuts monthly cooling bills 20-30%.
Laminated impact glass shuts out up to 40% of outside noise - traffic, neighbors, weather.
Monitoring services run $30-90 a month. Laminated impact glass resists forced entry around the clock, with no subscription.
Florida homeowners average around 25% savings on the windstorm portion of their policy after protecting every opening - some homes qualify for more.
A full impact package upgrades curb appeal, buyer confidence and appraised value in one project.
Other TruePane Windows & Doors Services
What Neighbors Say About TruePane Windows & Doors

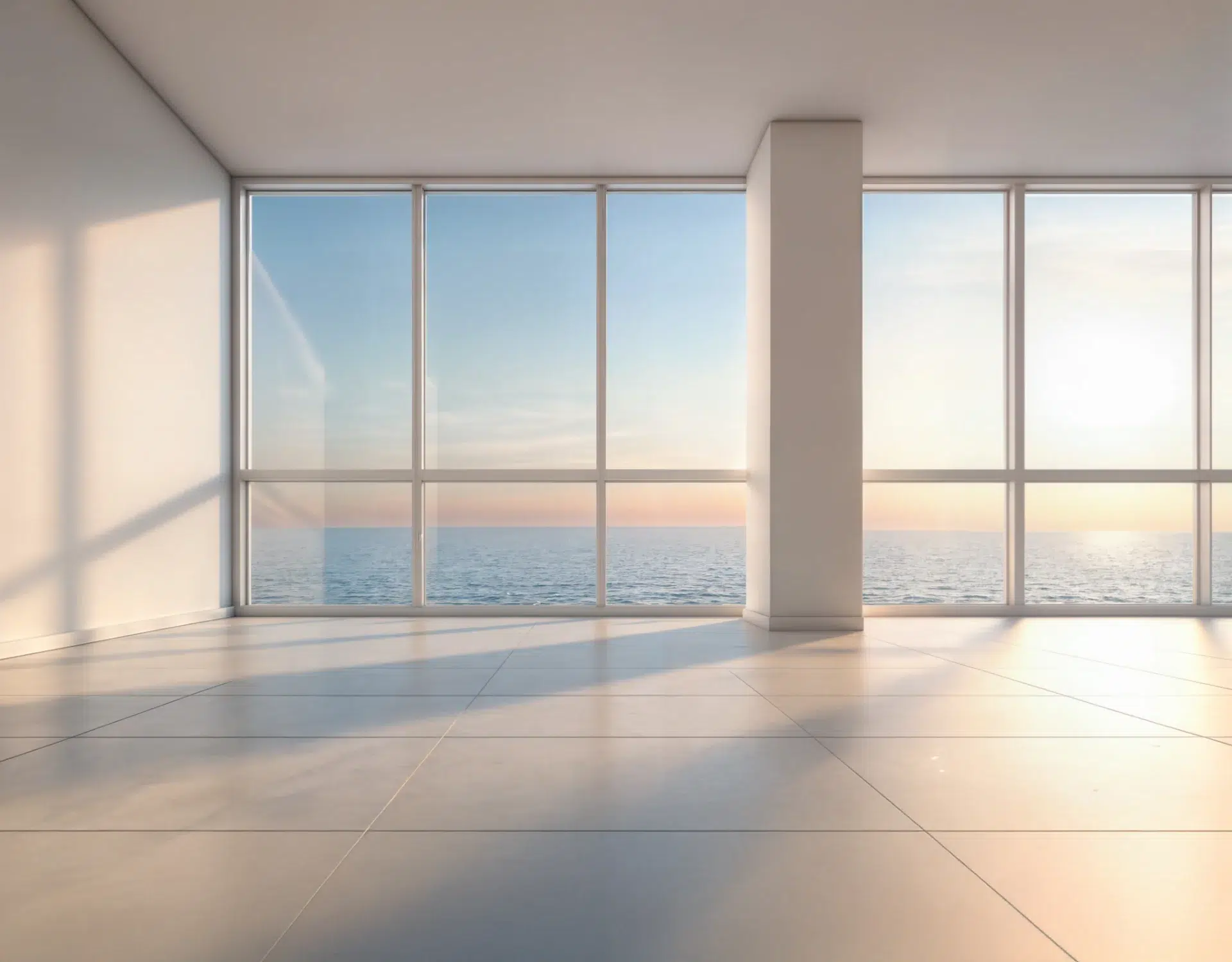

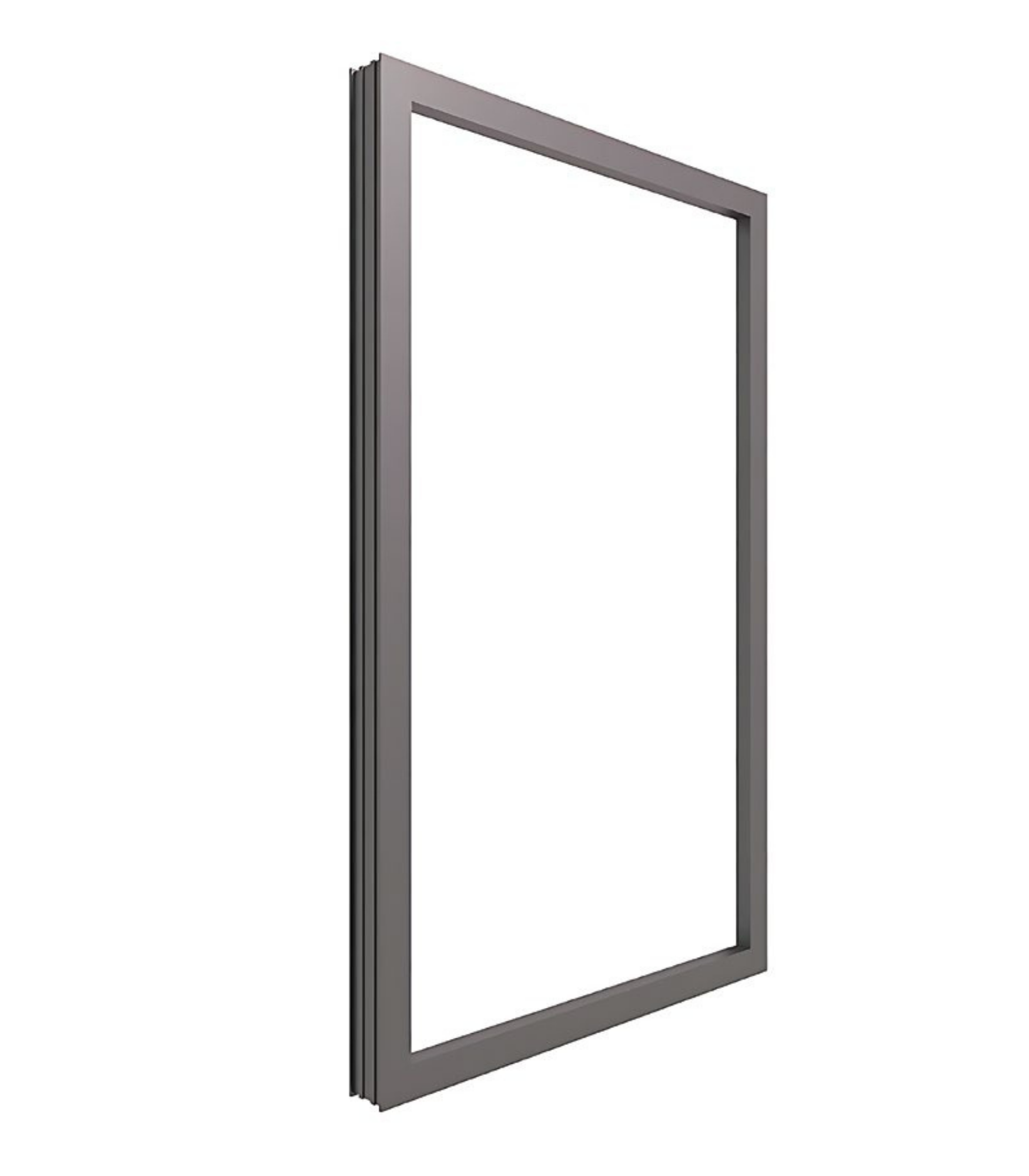

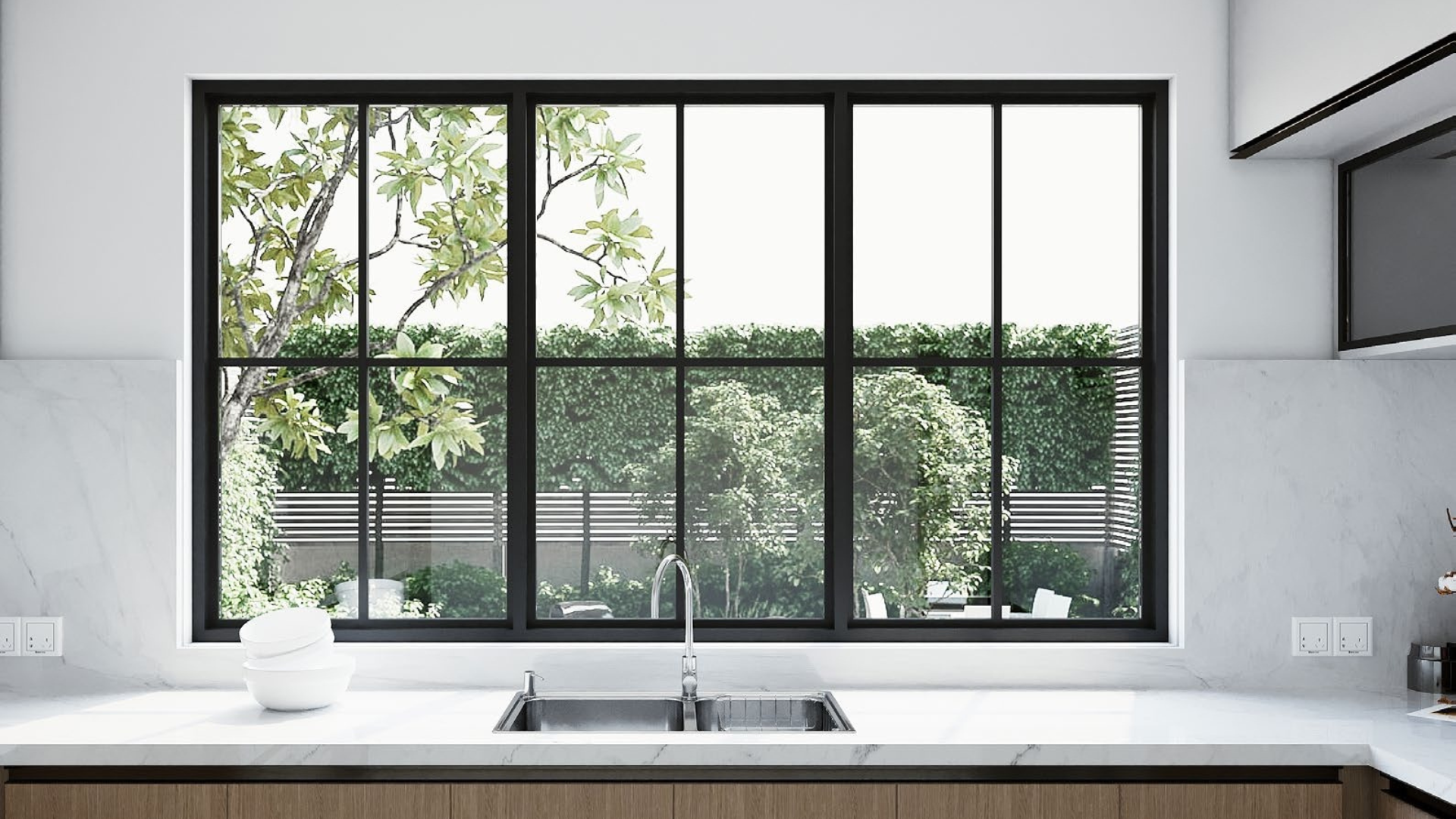

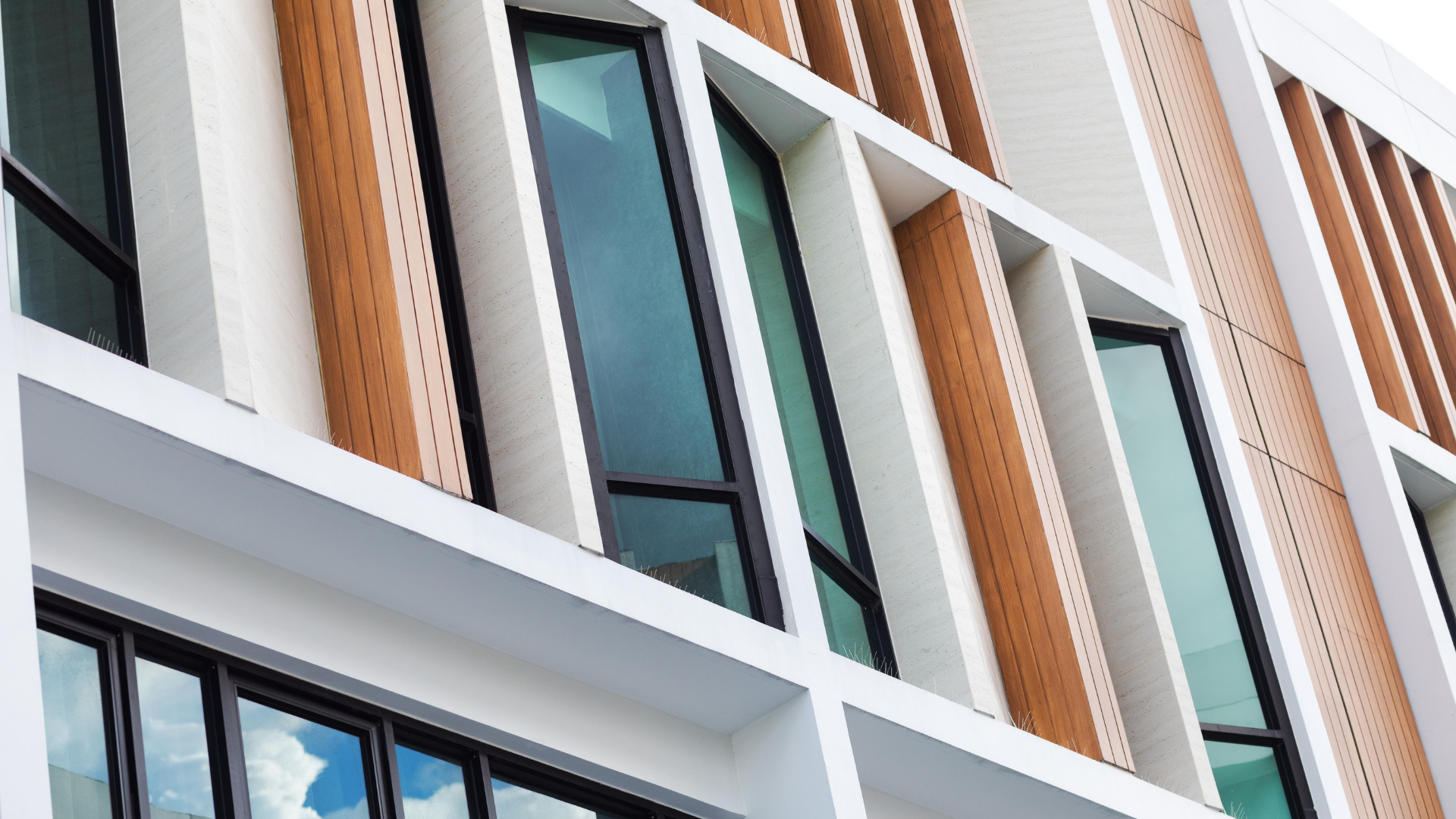

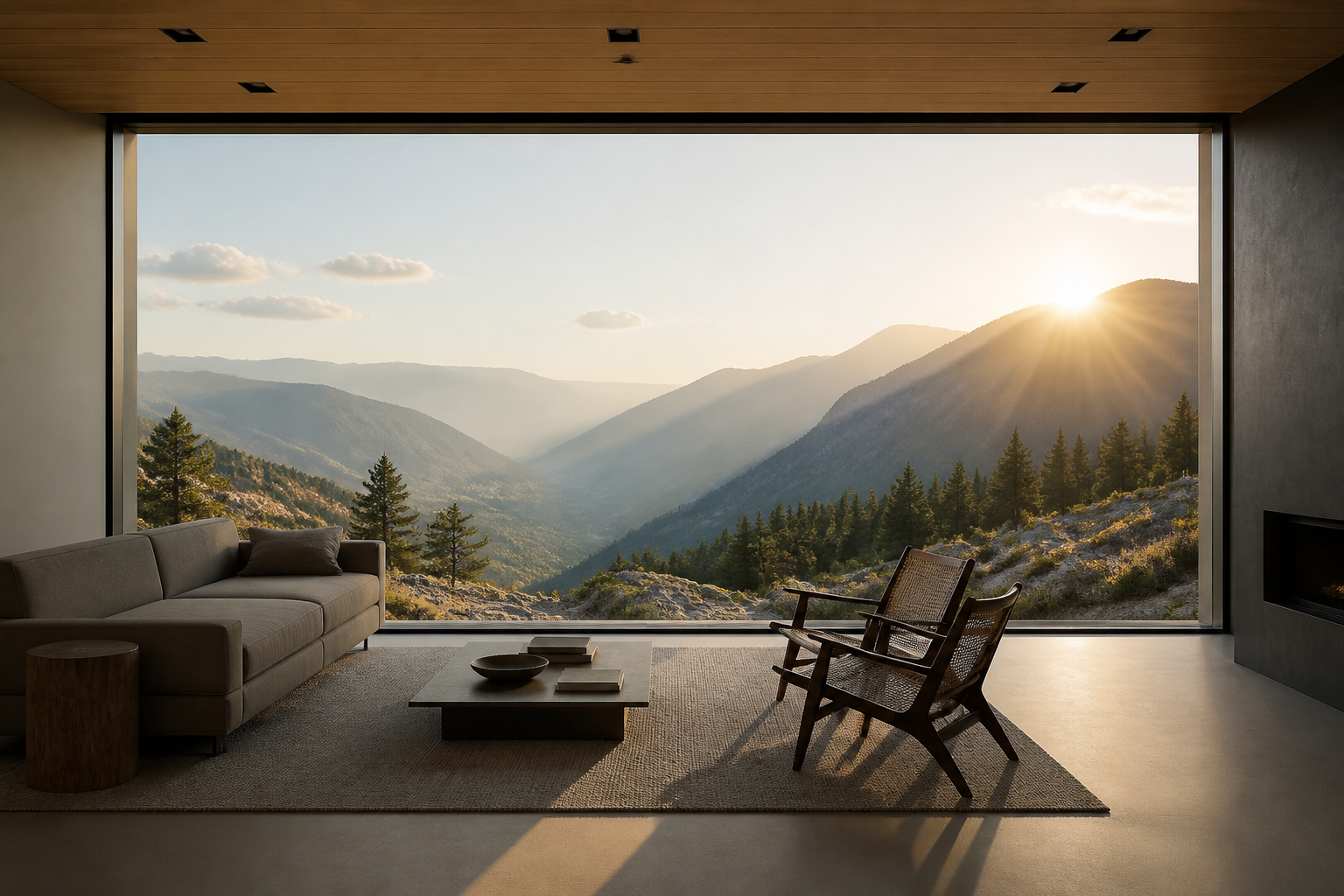

Detailed Images
