VLX 138 Panoramic Sliding Door

VLX 138 Panoramic Sliding Door in Palm Beach Gardens, FL | TruePane Windows & Doors

If you’re planning a remodel or new build in Palm Beach Gardens and want the back of your house to open up to the pool, the patio, or the garden, the VLX 138 Panoramic Sliding Door deserves a close look. It’s a luxury large-span panoramic slider built to deliver expansive, uninterrupted views with an ultra-smooth glide on stainless bearings, and TruePane Windows & Doors is an authorized ViewLux installation partner right here in Palm Beach Gardens. That matters because a door like this only performs as designed when it’s installed to exacting standards. Call us at (772) 794-8169 to talk through your project and get a free estimate.

Call (772) 794-8169

Product Overview - VLX 138 Panoramic Sliding Door

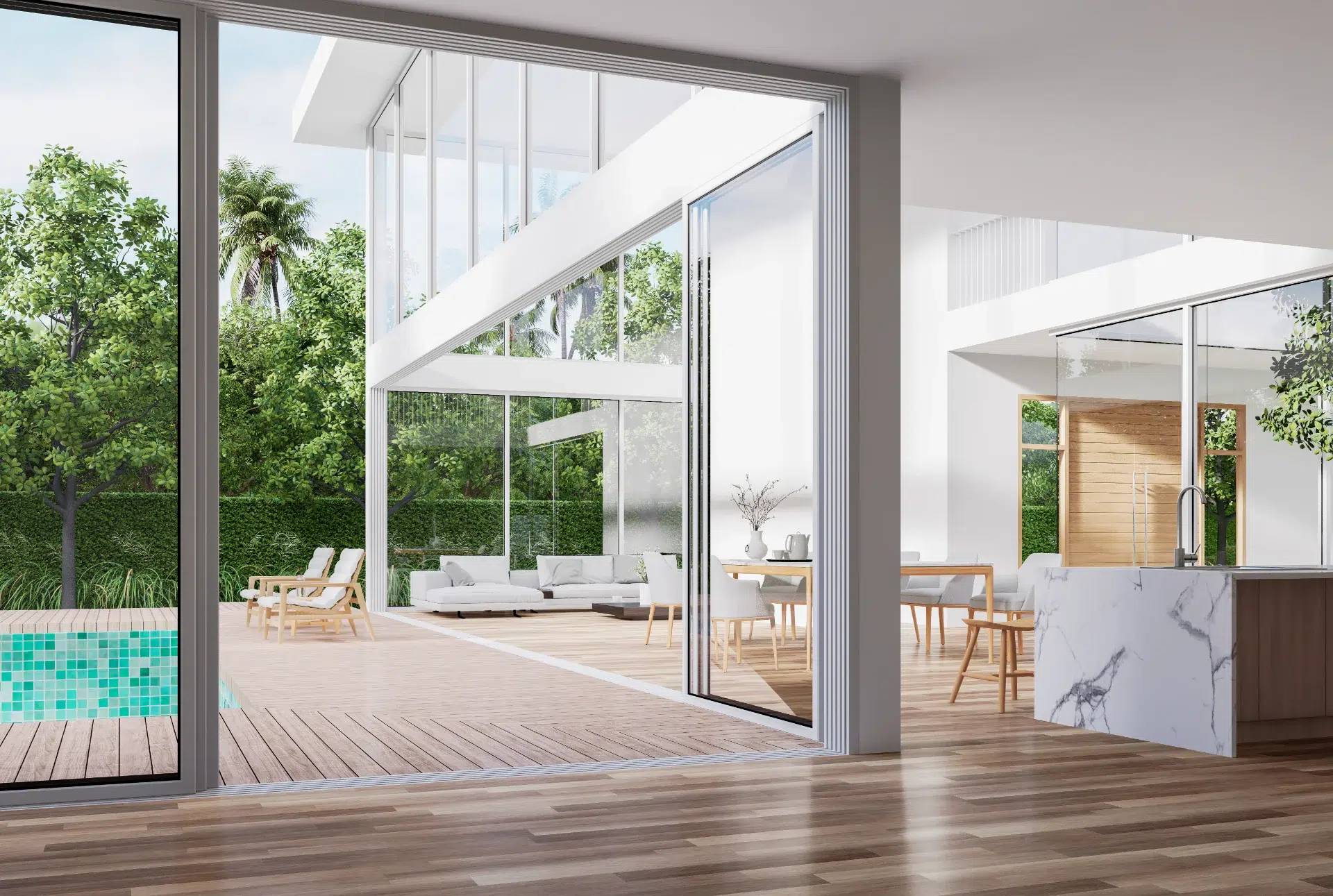

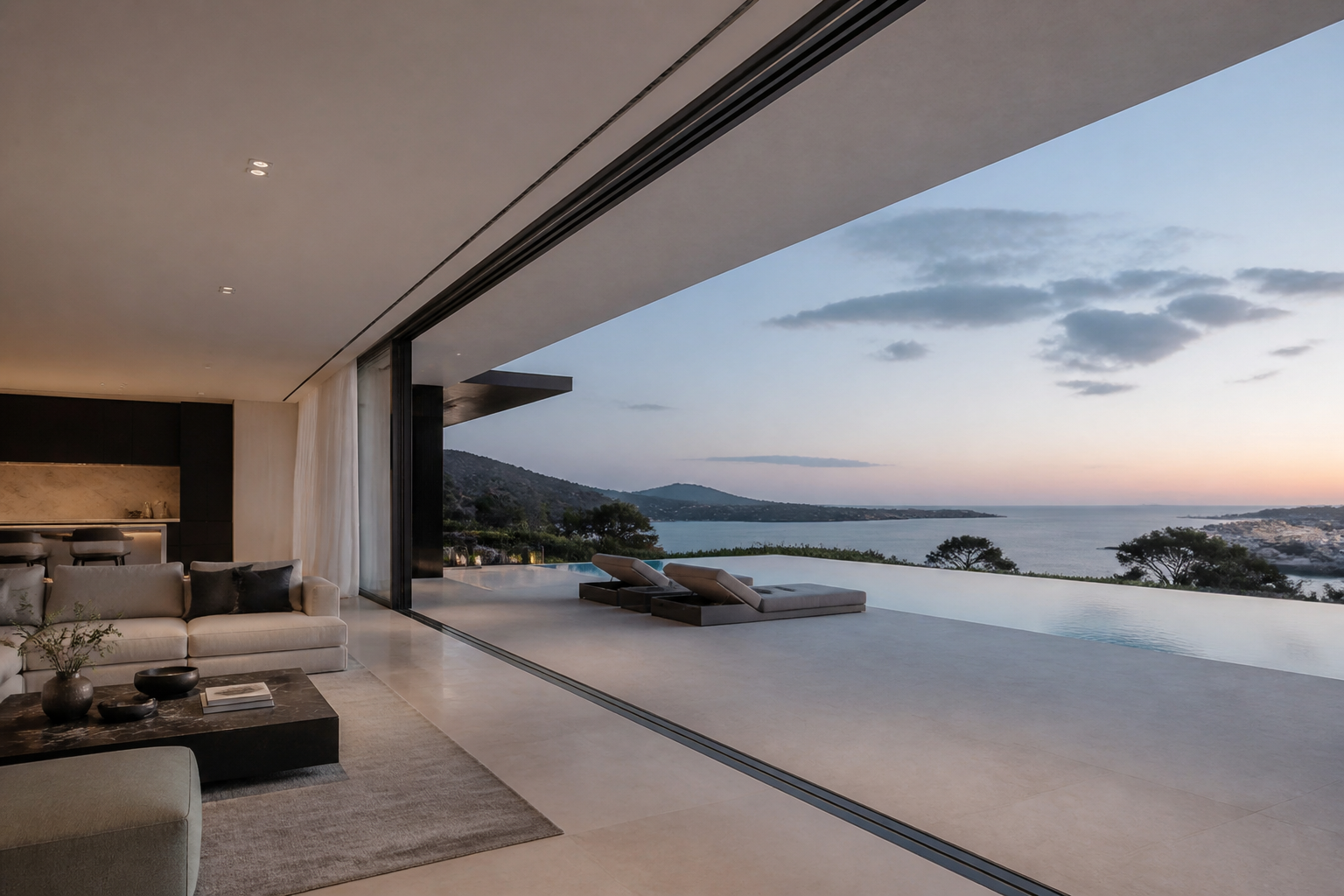

The VLX 138 is the door you choose when the view is the point. We’ve installed these in Palm Beach Gardens homes where the pool deck runs the full width of the living room, where a preserve or lake sits ten feet past the back wall, and where homeowners want the room to feel twice its actual size. The panel spans are generous enough to make the wall disappear when open, but the real magic is what you see when it’s closed: a near-rimless glass plane that doesn’t chop the view into vertical bars.

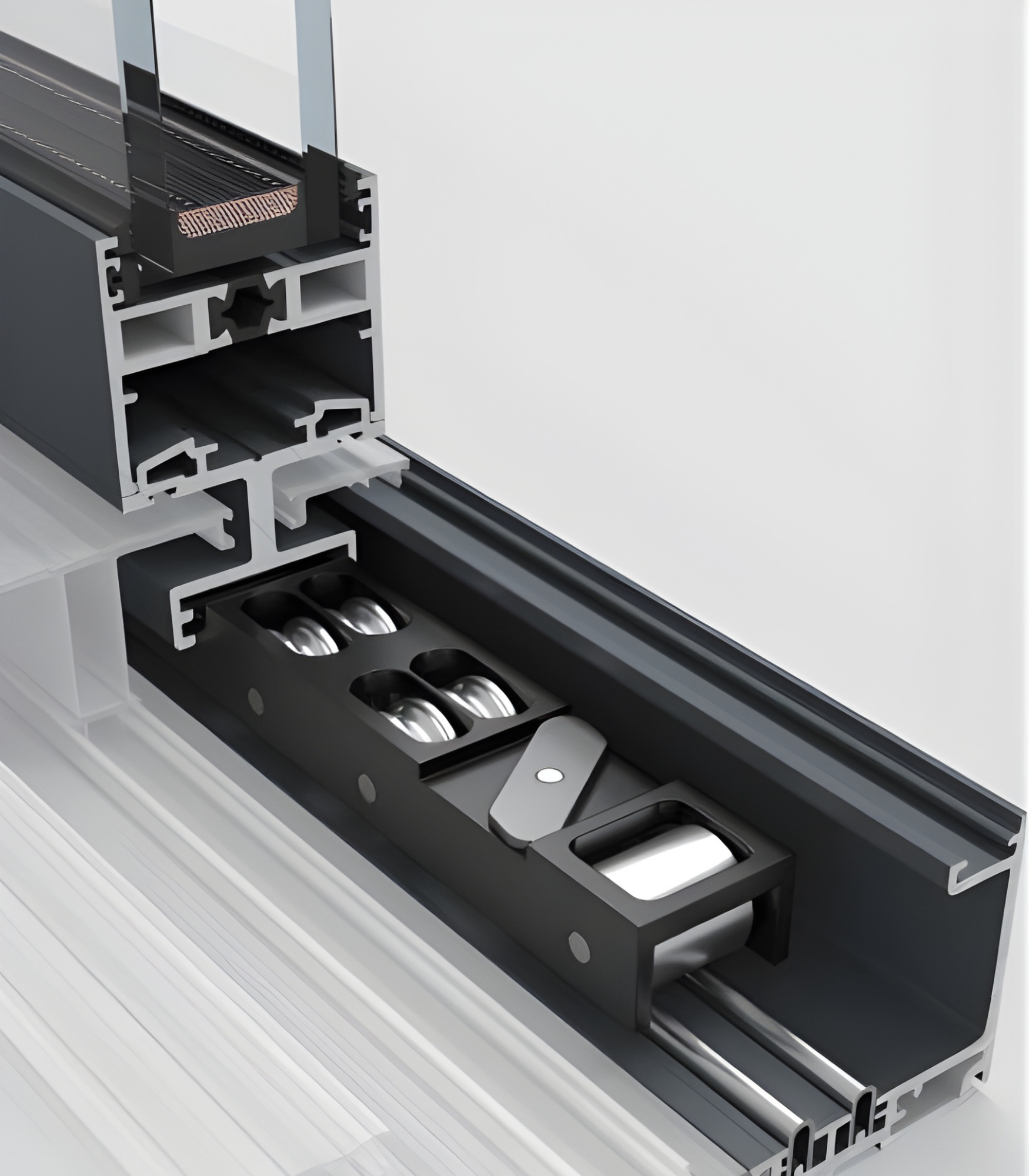

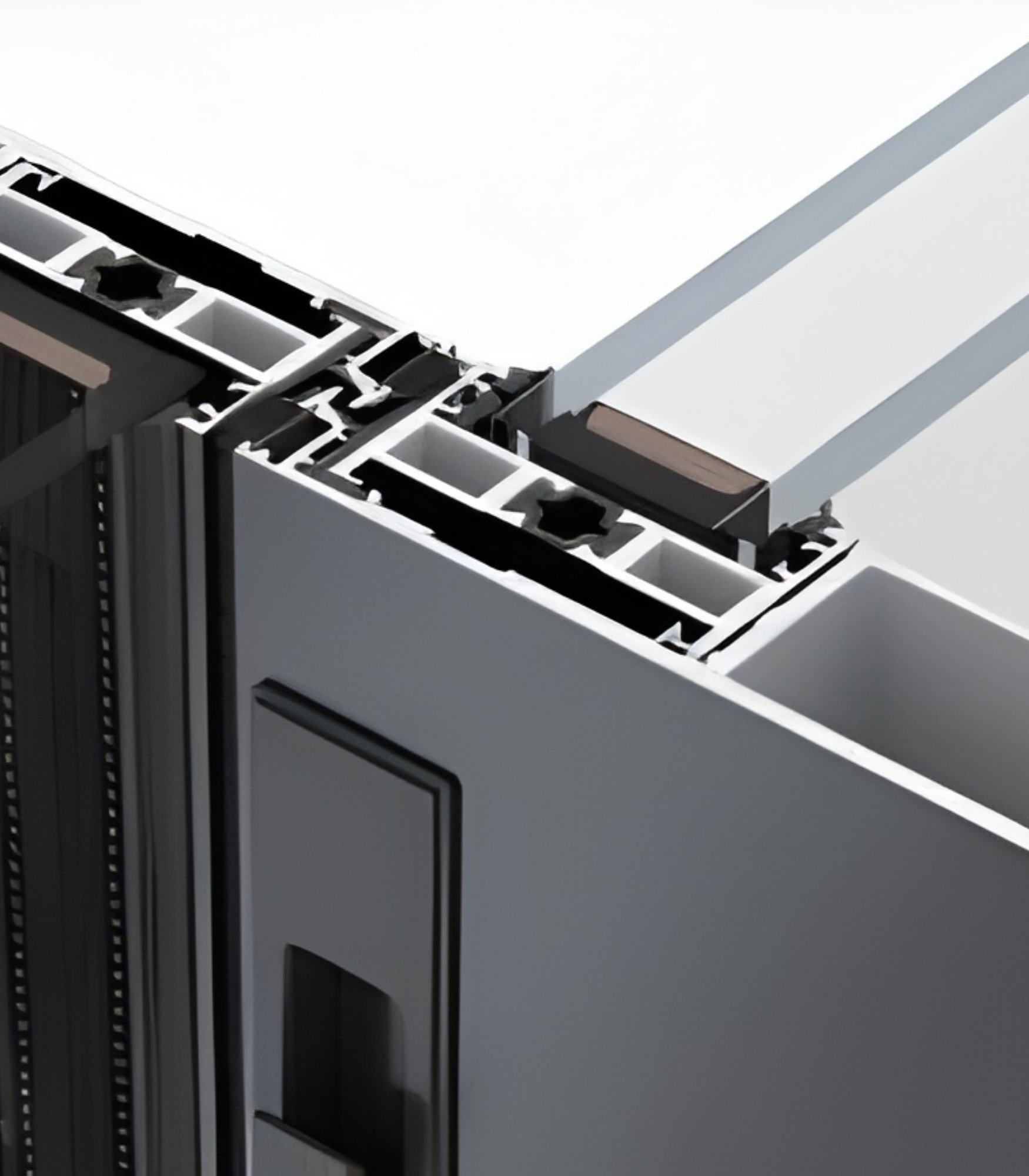

Structurally, this series is built on a 0.138-inch wall thickness and a 1.535-inch profile width. What that means in plain terms is a door that holds its shape across very wide openings without sagging, binding, or flexing when the wind loads kick in during a summer storm. The panels ride on stainless bearings. If you’ve ever wrestled with a heavy slider that takes two hands and a hip-check to move, you’ll appreciate the difference immediately. The VLX 138 glides with one hand, even on panels stretched to 36 feet of total opening width.

You can configure it as a 2-track, 3-track, or 4-track system depending on how many panels you want to stack and how wide you want the clear opening. In a Palm Beach Gardens home with a 20-foot wall of glass, a 3-track layout gives you two-thirds of the wall open to the patio while the panels tuck cleanly behind one another. It’s a serious architectural feature, not just a back door replacement.

As an authorized ViewLux installation partner, TruePane Windows & Doors sells and installs this product with the factory’s full confidence behind the work. We measure, order, install, level, seal, and warrant the entire job. You get one company accountable for the product and its performance, from first measurement to final water test. Call (772) 794-8169 to schedule your free on-site measurement in Palm Beach Gardens or the surrounding communities.

Technical Specifications

• Wall thickness: 0.138 inches, the backbone of the frame’s rigidity across wide spans
• Profile width: 1.535 inches, designed to keep sightlines slim while retaining structural integrity
• Maximum span: Up to 36 feet of total opening width
• Track configurations: 2-Track, 3-Track, and 4-Track, depending on panel count and clear-opening needs
• Glass options: Clear, Low-E, Frosted, Obscure, Black Tint, Gray Tint
• Color and finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
• Screen options: Retractable Screen, Sliding Screen

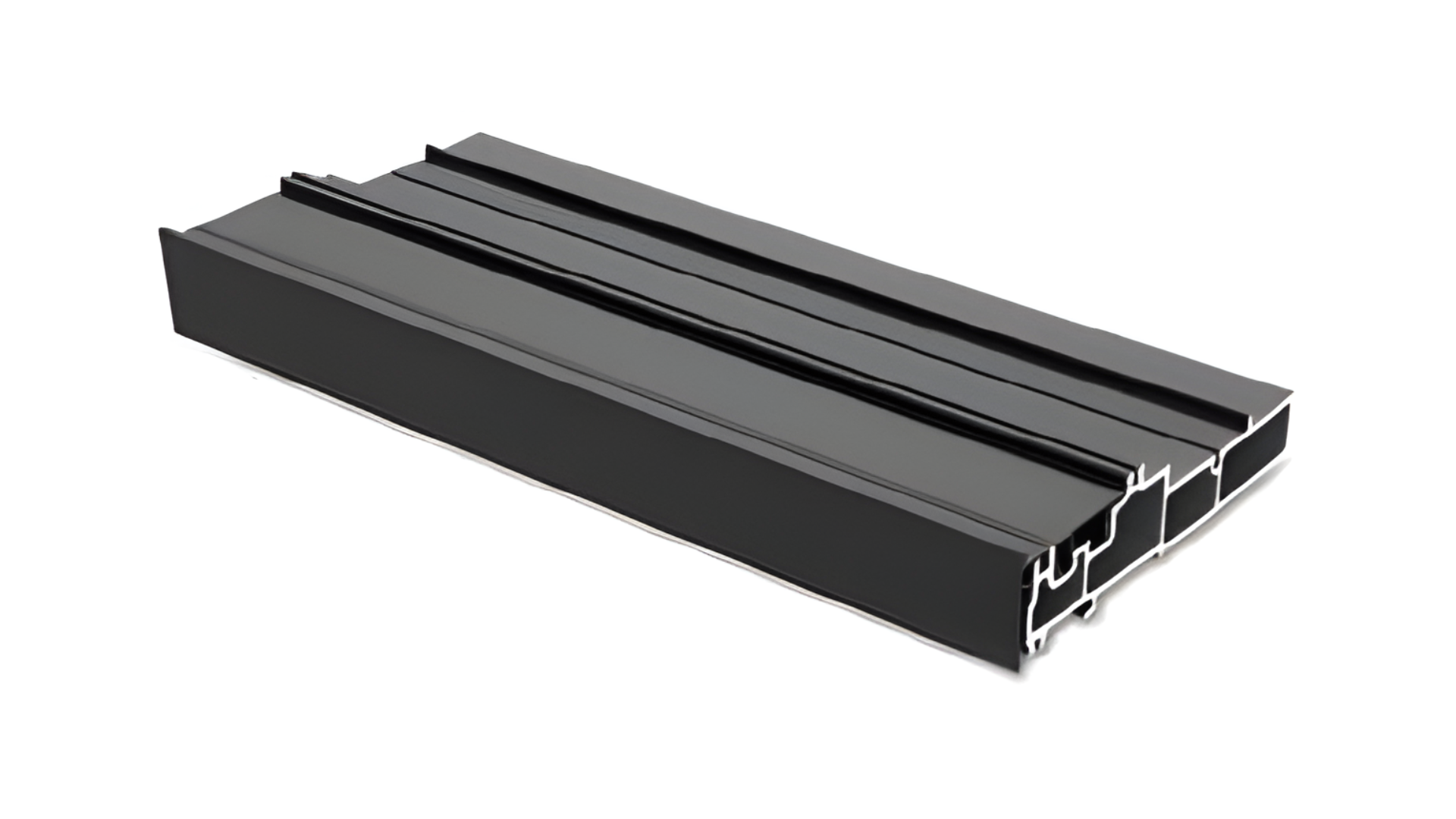

• Sill options: Flush Sill, Low-Profile Sill, Recessed Sill
• Thermal performance: Thermal break technology with NFRC-rated energy performance
• Installation standard: AAMA 2400/2410 compliant installation procedures
• Perimeter sealant: AAMA 812 low-expansion foam on all perimeter joints during install
• Storm capability: Impact-resistant laminated glass option available, wind-load rated for local Palm Beach County climate requirements

Performance Features

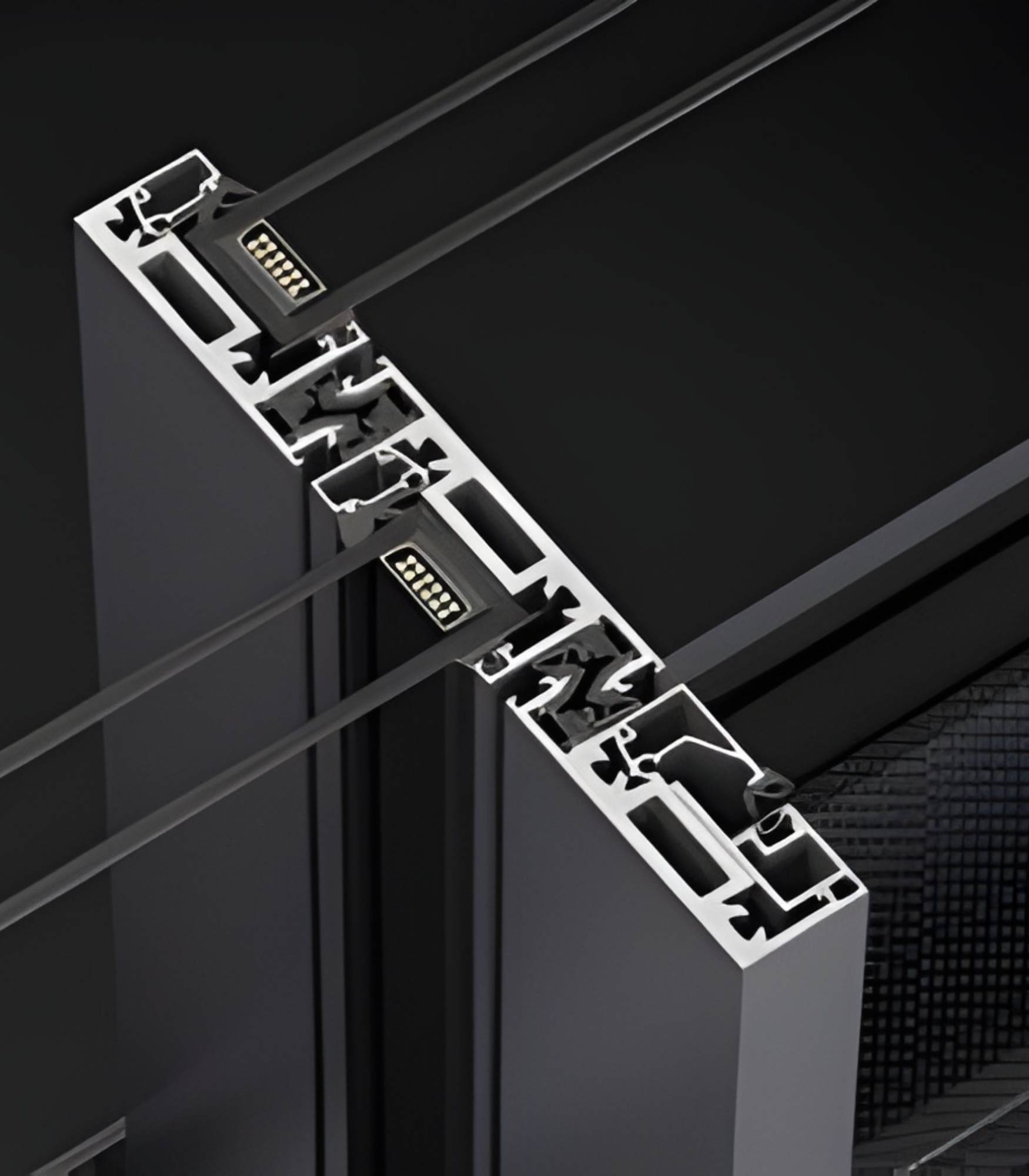

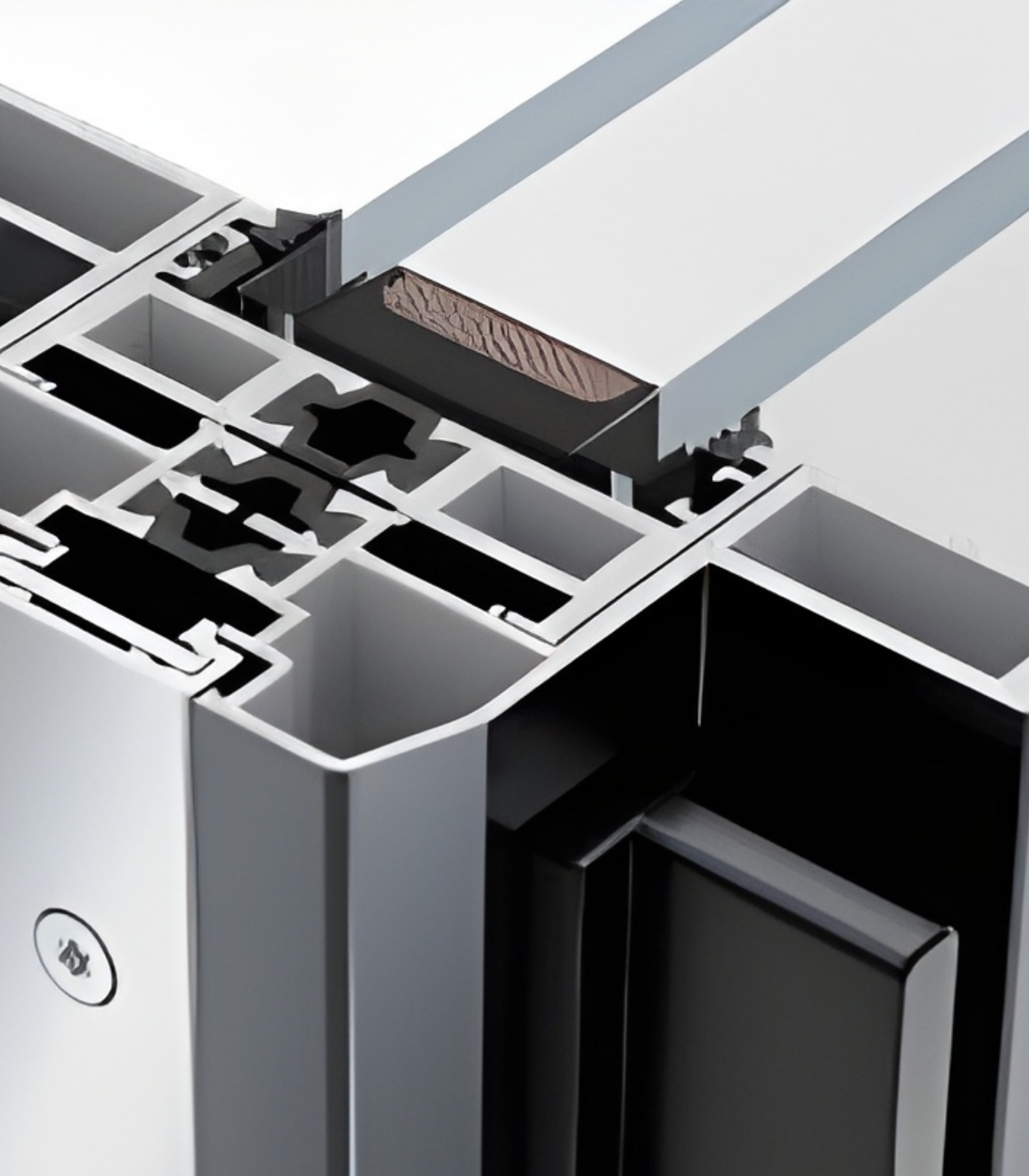

Thermal Efficiency - The VLX 138 uses a thermal break in the aluminum frame, which stops heat from conducting through the metal and into the house. In Palm Beach Gardens, where summer cooling bills run high and the afternoon sun beats on west-facing walls, this is a difference you can feel on the indoor frame surface and see in your monthly FPL bill.

Acoustic Performance - The combination of the frame’s thermal break, the dual-pane glass package, and a properly sealed perimeter cuts outside noise noticeably. If your Palm Beach Gardens lot sits near PGA Boulevard, Military Trail, or I-95, you won’t hear every motorcycle and truck the way you would with a builder-grade slider.

Airtightness and Weather Seal - The frame is engineered to hold a tight compression seal when closed, and TruePane Windows & Doors installs every unit with AAMA 812 low-expansion foam on all perimeter joints. No foam gaps, no draft, no hot air seeping in around the frame like you get with sloppily installed off-the-shelf doors.

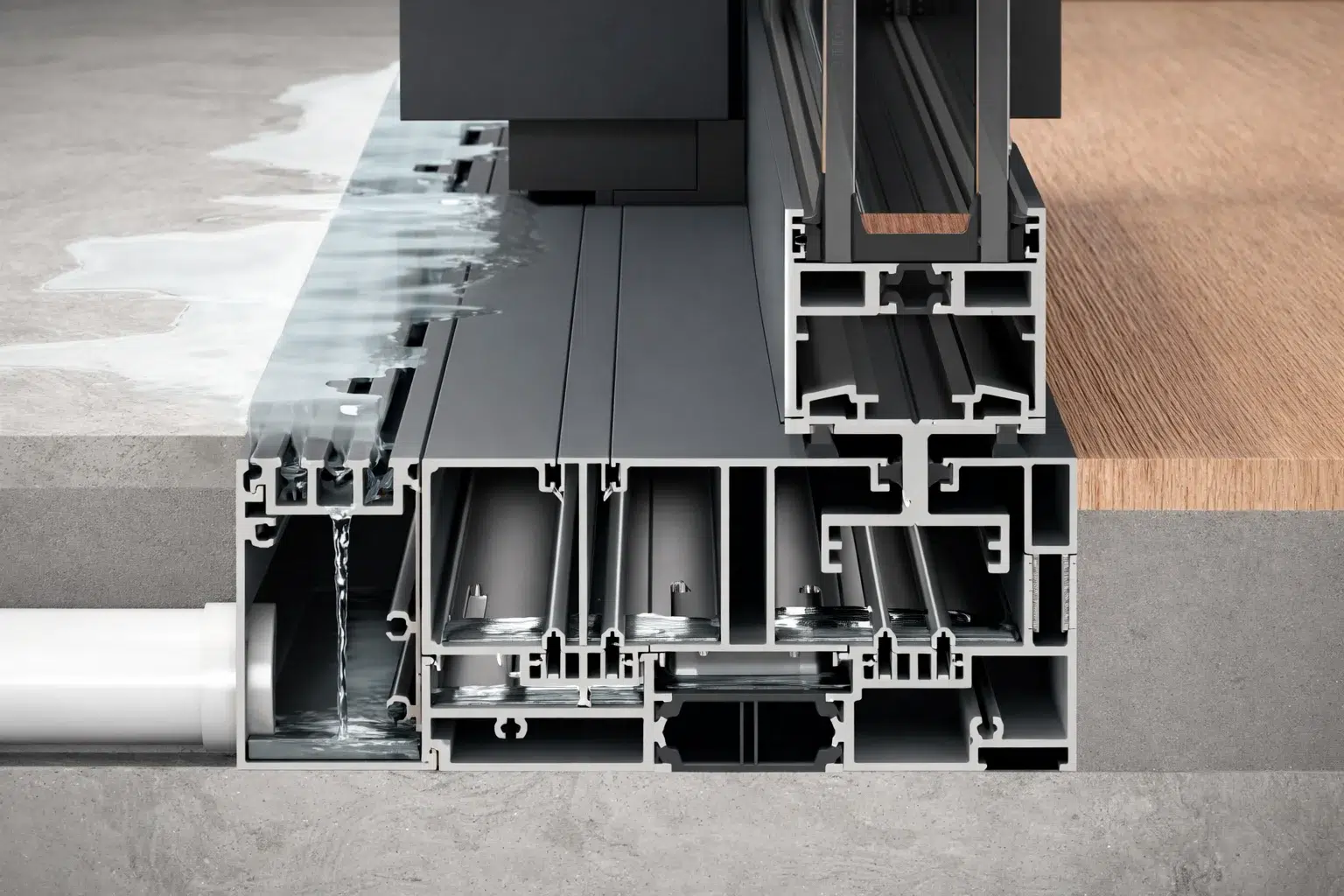

Waterproofing - South Florida gets rain that comes sideways. The VLX 138’s sill designs, especially the recessed and low-profile options, are built to drain properly and keep water out of the house. Proper perimeter sealing by an experienced Palm Beach Gardens installer is the final piece that prevents moisture intrusion at the wall-to-door junction.

Wind Resistance - Palm Beach County sits in the high-velocity hurricane zone. The VLX 138 can be ordered with impact-resistant laminated glass and is wind-load rated for local code requirements. You’re not getting a tropical door. You’re getting a product that can stand up to a serious storm when paired with the correct glass package.

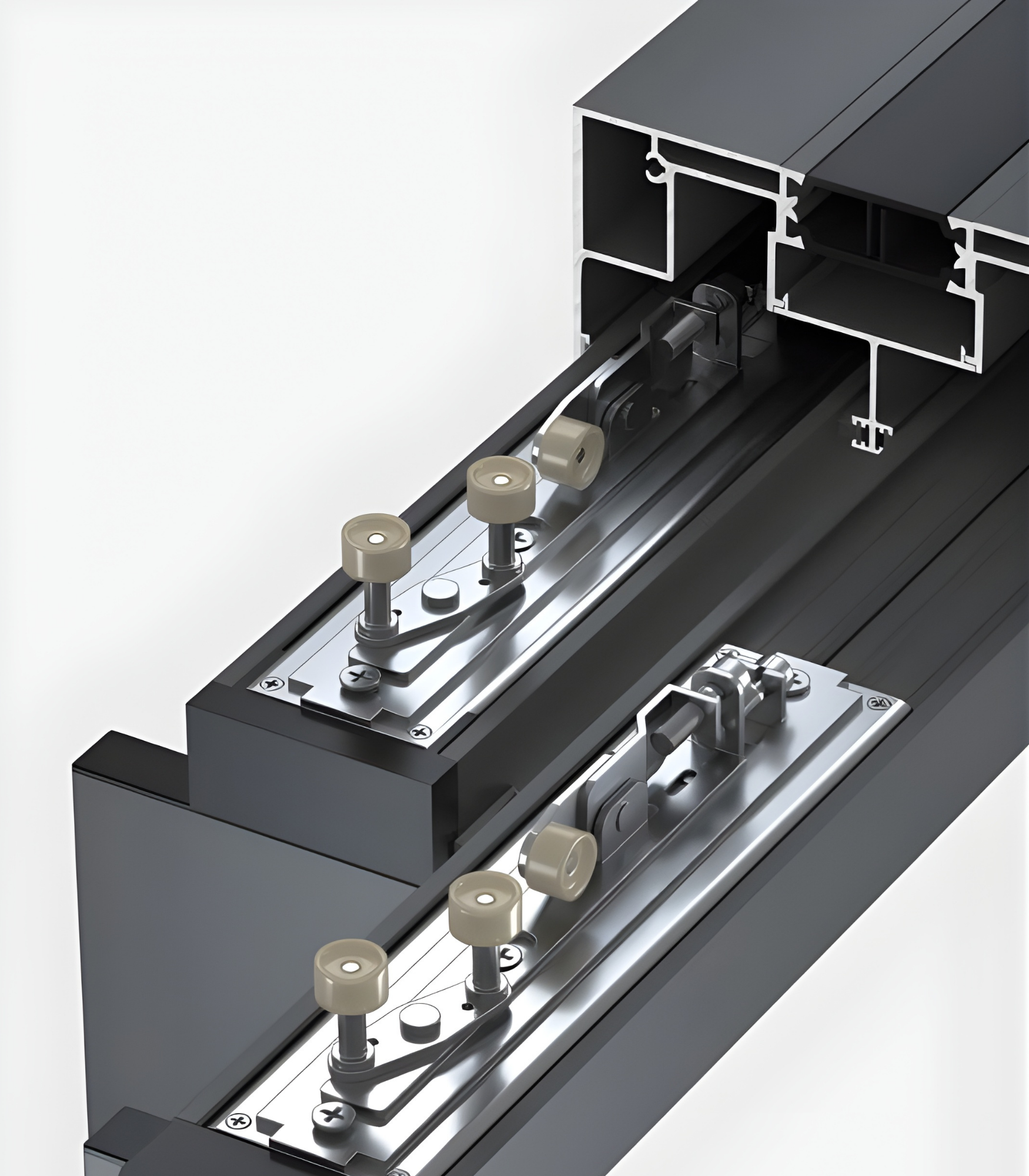

Security and Hardware - The stainless bearing rollers keep panels aligned so the locking mechanisms engage cleanly every time. The multi-point locks and reinforced frame sections make the closed door a serious barrier, not a glass wall a burglar can lift off its track with a pry bar.

Color & Glass Options

The VLX 138 comes in six finishes, so you can match the door to the house rather than redesigning the house around the door. Premium Black is the go-to for modern and contemporary Palm Beach Gardens homes. It frames the view like a gallery piece and pairs beautifully with light-colored interior walls and travertine or porcelain patio tile. Pure White works well on coastal-inspired and Key West-style elevations, or anywhere you want the frame to fade into a light interior rather than assert itself. Anodized Silver is the cleanest minimal look, ideal for mid-century or transitional designs. Bronze brings warmth and richness, sitting nicely alongside natural wood tones and Mediterranean-style facades common in Palm Beach Gardens. Champagne is softer than bronze, with a subtle warm sheen that suits homes with brass or gold fixtures. Teak Wood gives you the look of real timber without the maintenance headaches, which matters in our humidity and salt air.

On glass, Clear is the purest view but offers the least solar control. Low-E is the smart default in Palm Beach Gardens: it blocks a significant portion of solar heat while keeping the view crisp. Frosted and Obscure glass make sense for panels that face a side yard, a close neighbor, or an interior bathroom or closet opening where you want light but not a sightline. Black Tint and Gray Tint cut glare and reduce heat gain, which is practical on west-facing exposures that get blasted from late morning to sunset. Whatever combination you’re considering, we’ll walk you through samples at our Palm Beach Gardens showroom or bring them to your home.

Installation by TruePane Windows & Doors in Palm Beach Gardens

We’re going to say something that the big-box stores won’t: a premium panoramic sliding door installed incorrectly is worse than a mid-priced door installed well. A 36-foot VLX 138 with a 0.138-inch wall profile depends on a perfectly level, square, and plumb installation. If the opening isn’t shimmed correctly, the panels bind. If the perimeter isn’t sealed with AAMA 812 low-expansion foam, you’ll get drafts and moisture. If the sill isn’t set exactly right, you’ll find water on the floor after the first hard Palm Beach Gardens storm.

That’s why every TruePane Windows & Doors installation follows the AAMA 2400/2410 standard. Our process starts with a pre-installation inspection of the rough opening, the substrate condition, and the existing waterproofing details. We check for level, plumb, and square before the door ever comes off the truck. We set the frame dead true, seal all perimeter joints with low-expansion foam per AAMA 812, apply the perimeter sealant, and then run a final water test on the sill and jambs. After the panels are hung and adjusted, we verify the glide and the lock engagement, and we clean the glass, the tracks, and the work area before we leave.

The manufacturer’s warranty on the VLX 138 assumes proper installation. An improper install can void coverage. You’re investing in a premium ViewLux product, and it deserves an authorized, experienced Palm Beach Gardens installation team. We take full responsibility for the finished opening: product, labor, and performance. Call (772) 794-8169 to schedule a free consultation and site measurement.

Frequently Asked Questions - VLX 138 Panoramic Sliding Door

What is the lead time for the VLX 138 Panoramic Sliding Door?
For Palm Beach Gardens projects, typical lead time from order to delivery runs between 6 and 10 weeks, depending on the glass package, finish, and panel configuration. Custom color matching or impact-rated laminated glass can push that to the longer end. We give you a clear delivery window when you approve the quote. Call (772) 794-8169 and we’ll check current production schedules for your specific configuration.

Does the VLX 138 Panoramic Sliding Door qualify for energy tax credits?
The VLX 138 can qualify for federal energy tax credits when ordered with Low-E glass and the thermal break package, because it meets NFRC-rated performance thresholds. Eligibility depends on your specific glass package and the current tax year’s program rules. We recommend you speak with your tax preparer and we’ll provide the NFRC documentation for your door. Call (772) 794-8169 for specifics on your configuration.

What warranty comes with the VLX 138 Panoramic Sliding Door?
ViewLux provides a manufacturer’s warranty covering the frame, glass, and hardware against defects in materials and workmanship. The installer’s portion of the job is covered by TruePane Windows & Doors’ workmanship warranty. Improper installation by a third party can void the manufacturer’s coverage, which is one of the strongest arguments for having an authorized partner handle the full scope. Call (772) 794-8169 and we’ll walk you through the exact warranty terms for your project.

Can I customize the VLX 138 Panoramic Sliding Door to fit my Palm Beach Gardens home?
Yes. The VLX 138 is built to order, not pulled from a warehouse shelf. You can specify the opening width up to 36 feet, choose between 2-track, 3-track, or 4-track configurations, and select from six frame finishes, six glass types, three sill options, and two screen options. We measure your specific opening to the sixteenth of an inch and the door is fabricated to fit it. Call (772) 794-8169 to schedule your measurement.

How do I maintain the aluminum frame on the VLX 138?
In Palm Beach Gardens, we recommend cleaning the frame and glass with mild soapy water every few months, and more often if your home is close to the ocean or the Intracoastal where salt spray accumulates. Wipe down the bottom track monthly to keep it clear of sand, leaves, and debris that can grind against the rollers. Check the weep holes near the sill and clear them with a soft brush so drainage stays open. Never use abrasive pads or ammonia-based cleaners on the coated aluminum finishes. Call (772) 794-8169 if you notice a change in glide quality, and we’ll take a look.

Get a Quote - VLX 138 Panoramic Sliding Door in Palm Beach Gardens

If you’re ready to see what a true panoramic slider looks like in your own home, let’s talk. Call TruePane Windows & Doors at (772) 794-8169 and we’ll schedule a free on-site measurement in Palm Beach Gardens. We’ll bring finish samples, glass samples, and a written line-item quote with no change-order surprises. You’ll know exactly what your new VLX 138 costs before you commit to anything.

Written by the team at TruePane Windows & Doors, authorized ViewLux installation partner serving Palm Beach Gardens and surrounding communities.
